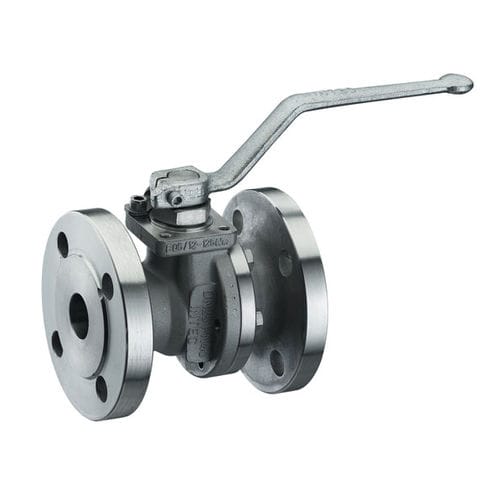

Floating ball valve K220leverfor controlseat
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- lever
- Function
- for control
- Body
- seat, stainless steel, carbon steel
- Applications
- flange
- Other characteristics
- ISO, ANSI, DIN
- DN
Min.: 15 mm
(0.591 in)Max.: 200 mm
(7.874 in)- Pressure
16 bar, 40 bar
(232.1 psi, 580.2 psi)- Temperature
Min.: -29 °C
(-20 °F)Max.: 225 °C
(437 °F)
Description
INTEC K220
Flanged ball valve, floating ball, single side spring loaded seat ring, soft seated.
Features
nominal size DN 15 - DN 200
nominal size NPS 1/2" - NPS 8"
two-piece split body
soft seated
floating ball
single side spring loaded seat ring
FTF dimensions acc. to EN 558, GR.1 and EN 558, GR.27
FTF dimensions acc. to ANSI B 16.10
flanges acc. to EN 1092
flanges acc. to ANSI B 16.5
top flange DIN EN ISO 5211
full bore
