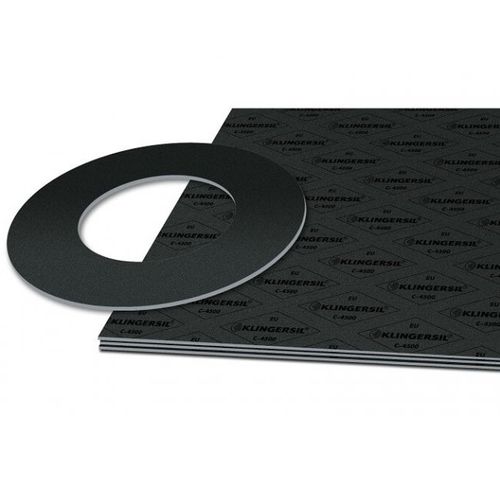

NBR gasket sheet KLINGERSIL® C-4500
carbonhigh-pressure

NBR gasket sheet - KLINGERSIL® C-4500 - KLINGER - carbon / high-pressure
NBR gasket sheet - KLINGERSIL® C-4500 - KLINGER - carbon / high-pressure
NBR gasket sheet - KLINGERSIL® C-4500 - KLINGER - carbon / high-pressure - image - 2
NBR gasket sheet - KLINGERSIL® C-4500 - KLINGER - carbon / high-pressure - image - 3
Add to favorites
Compare this product


Characteristics

Material
NBR, carbon
Other characteristics
high-pressure
Temperature limit

Min.: 175 °C
(347 °F)

Max.: 300 °C
(572 °F)

Pressure limit

40,000,000 Pa, 50,000,000 Pa
(5,801.5 psi, 7,251.9 psi)

Description

KLINGERSIL® C-4500 Superior performance gasket especially for the chemical industry KLINGERSIL® C-4500 is a premium quality high-pressure gasket especially suitable for use with high temperature alkaline media and superheated steam. It is a superior performance product designed for the use in the chemical industry. Basis Carbon fibers and special heat-resistant additives, bonded with NBR. Areas of application Suitable for use with alkaline media and steam at higher temperatures as well as to oils, gases, salt solutions, fuels, alcohols, organic and inorganic acids, hydrocarbons, lubricants and refrigerants. Key features Utilization of carbon fibres Heat resistant additives Resistant to creep and cold flow Dimensionally stable Benefits Suitable for high temperature alkaline media Suitable for superheated steam

Catalogs
