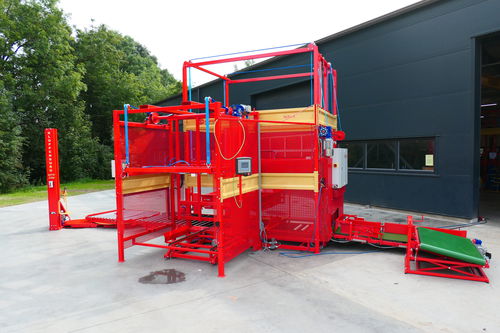

Palletizer with stacker WIBO 8 TPV
bagpalletfor the packaging industry

Palletizer with stacker - WIBO 8 TPV - Kloppenburg Machinebouw - bag / pallet / for the packaging industry
Palletizer with stacker - WIBO 8 TPV - Kloppenburg Machinebouw - bag / pallet / for the packaging industry
Palletizer with stacker - WIBO 8 TPV - Kloppenburg Machinebouw - bag / pallet / for the packaging industry - image - 2
Palletizer with stacker - WIBO 8 TPV - Kloppenburg Machinebouw - bag / pallet / for the packaging industry - image - 3
Palletizer with stacker - WIBO 8 TPV - Kloppenburg Machinebouw - bag / pallet / for the packaging industry - image - 4
Palletizer with stacker - WIBO 8 TPV - Kloppenburg Machinebouw - bag / pallet / for the packaging industry - image - 5
Palletizer with stacker - WIBO 8 TPV - Kloppenburg Machinebouw - bag / pallet / for the packaging industry - image - 6
Add to favorites
Compare this product


Characteristics

Type
with stacker
Product applications
bag, pallet
Sector
for the packaging industry, for the food industry
Other characteristics
automatic, compact, modular
Throughput

Max.: 900 p/h

Min.: 600 p/h

Pallet width

1.2 m
(3'11" )

Pallet length

1 m
(3'03" )

Pallet weight

Max.: 50 kg
(110.23 lb)

Min.: 5 kg
(11.02 lb)

Maximum palletizing height

2.3 m
(7'06" )

Machine length

2.95 m
(9'08" )

Machine width

2 m
(6'06" )

Machine height

3.85 m
(12'07" )

Overall weight

1,600 kg
(3,527 lb)

Electric powered

400 V

Description

Continuous development of the WiBo TPV has resulted in this more compact model WiBo 8 TPV. The WiBo 8 TPV with its modular construction system is easy to expand and adapt to your needs, such as input and output directions, speed of operations and integrated into a complete packaging line. You can choose for the machine to stack only or expand into a fully automated line. STANDARD SPECIFICATIONS • Walk-in security, collect sensor and pallet detection sensor. • Modular construction system. • Stack height up to 2.3m including pallet (higher optional). • Max. pallet size: 1.0 x 1.2m. • Capacity 600-900 bags per hour depending on input and output directions and bag size. • 100 free programmable programs of which c.a. 30 are filled in. • Raschel bags, jute bags, plastic and paper bags from 5 to 50kg (crates and boxes optional). • Renewed control panel with faster control in which all options are already incorpared, so later they can easily be installed without software update.
