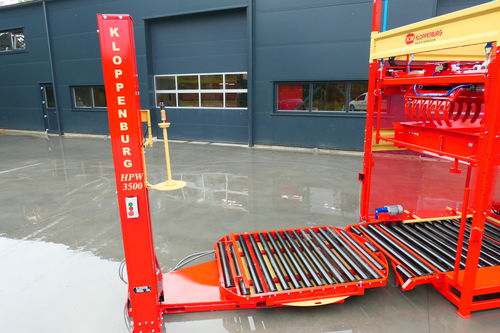

Turntable stretch wrapper HPW 3500automaticfor agricultural applicationspallet
Add to favorites
Compare this product
Characteristics
- Type
- turntable
- Operating mode
- automatic
- Product applications
- pallet, for agricultural applications
- Other characteristics
- with rollers
- Maximum wrapping height
2.2 m
(7'02" )- Maximum pallet length
1.2 m
(3'11" )- Maximum pallet width
1.6 m
(5'02" )- Table diameter
1,500 mm
(59.06 in)
Description
The HPW 3500 is specially designed to connect with the WiBo TPV palletizer. It is a turntable wrapper. The platform rotates while net or foil is stretched around the load. The position of the wrapper behind the pallet output of the palletizer can be adjusted to any desired position. Also, the position for the forklift to pick up the pallet from the wrapper is adjustable. This makes the wrapper flexible to fit into the available space.
Adjustable
• Number of wraps in starting position at the bottom of the pallet.
• Speed wrapping going up.
• Number of wrappings at the end position at the top of the pallet.
• Speed wrapping going down.
• Position in relation to the palletizer.
• Unpacking position for the forklift.
• Easy to move.
