AC gear-motor F series
helical gearparallel-shaft100 W...500 W

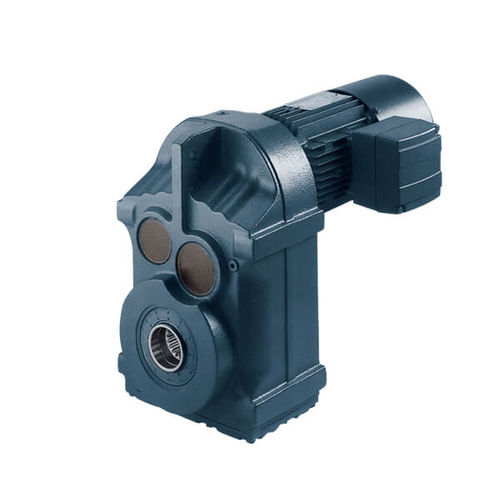

AC gear-motor - F series - kngear - helical gear / parallel-shaft / 100 W...500 W
AC gear-motor - F series - kngear - helical gear / parallel-shaft / 100 W...500 W
AC gear-motor - F series - kngear - helical gear / parallel-shaft / 100 W...500 W - image - 2
AC gear-motor - F series - kngear - helical gear / parallel-shaft / 100 W...500 W - image - 3
AC gear-motor - F series - kngear - helical gear / parallel-shaft / 100 W...500 W - image - 4
Add to favorites
Compare this product


Characteristics

Motor type
AC
Type
helical gear
Shaft orientation
parallel-shaft
Power
100 W...500 W, 1 kW...2 kW, 500 W...1000 W, 2 kW...5 kW, 20 kW...50 kW, 10 kW...20 kW, 5 kW...10 kW, 50 kW...100 kW, 100 kW...200 kW
Torque
5 - 10 Nm, 1 - 5 Nm, 500 - 1000 Nm, 20 - 50 Nm, 1 - 2 kNm, 50 - 100 Nm, 100 - 200 Nm, 10 - 20 Nm, 0.5 - 1 Nm, 0.2 - 0.5 Nm, 0.1 - 0.2 Nm, 200 - 500 Nm, 2 - 5 kNm, 0 - 0.1 Nm, 5 - 10 kNm, > 10 kNm
Mounting
foot-mounted, flange-mounted, shaft-mounted
Number of stages
two-stage, three-stage
Other characteristics
compact, modular, explosion-proof

Description

FEATURES: 1. Modular design, compact structure. Extra-slim parallel shaft helical gear motors are the perfect solution when space is limited 2. F series parallel shaft helical gear motors are typically used in conveyors and materials processing applications 3. Multi-stage(2 or 3 stages) gear units for low output speed 4. Hollow output shaft with the keyed connection, shrink disk, splined hollow shaft, or torque arm 5. Can be combined with other types of gearboxes (Such as R Series, UDL Series) 6. Optional mounting options (foot-mounted, flange-mounted, shaft-mounted) Rated Power:0.18kW~200kW Max. Torque: Up to 18000N.m Gear Arrangement: Helical Gears Shafts Position: Parallel Shaft Ratio:3.81~270.18 Installation Form: Foot, Flange, Shaft Mounted Installation: Foot-mounted B5 Flange-mounted B14 Flange-mounted Shaft-mounted Lubrication: Oil-bath and Splash Lubrication Cooling: Natural Cooling 1. Housing: Cast Iron 2. Gears: Hardened Helical Gears 3. Input Configurations: Equipped with Electric Motors Solid Shaft Input IEC-normalized Motor Flange 4. Applicable Motors: Single Phase AC Motor, Three Phase AC Motor Brake Motors Inverter Motors Multi-speed Motors Explosion-proof Motor Roller Motor 5. Output Configurations: Solid Shaft Output Hollow Shaft Output
