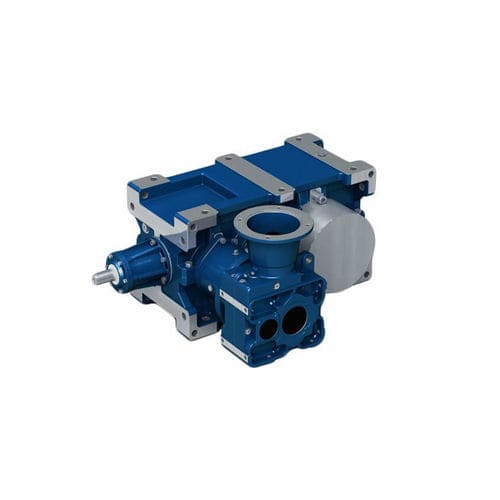

Bevel gear reducer BK series

helical gearright anglefor bucket elevators

FEATURES: 1. BK series is a full set gear units integrated with B series industrial gearboxes and K series bevel helical gear motors 2. Superior performance and high reliability for heavy-duty lifting applications 3. Large load capacity, high efficiency, long service life 4. Optional domestic or imported backstop and freewheel clutches Rated Power:7.3~1508kW Input Speed:1500,1000,750r/min Ratio:25~71 Output Speed:10.6~60r/min Gear Arrangement: Bevel Helical Gearset Shafts Position: Right Angle Mounted: Horizontal Mounting Housing: Cast Iron/Welding Steel Plate APPLICATIONS: Bucket Elevators Bucket Conveyors Scraper Conveyors Hoists Winches Freight Lifts Passenger Elevators Escalators INSTALLATION: Horizontal Mounted LUBRICATION: Oil Dip and Splash Lubrication Forced Lubrication COOLING: Natural Cooling Auxiliary Cooling Devices 1. Main Drive Gear Units: B Series Bevel Helical Gearbox 2. Auxiliary Drive: K Series Bevel Helical Gear Motor 3. Input Configurations: Keyed Solid Shaft Input Auxiliary Drive 4. Output Configurations: Keyed Solid Shaft Output (Types: B3S…) Keyway Hollow Shaft Output (Types: B3H…) Shrink Disc Hollow Shaft Output (Types: B3D…)
