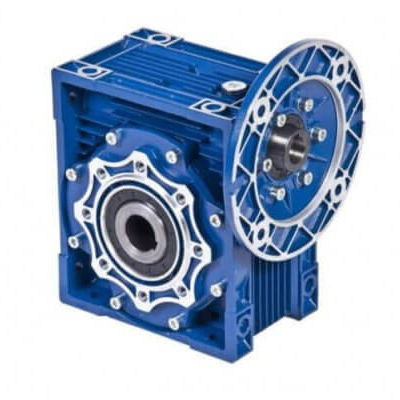

Worm gearbox RV series

right angle200 - 500 Nm100 - 200 Nm

FEATURES: 1. Quality aluminum alloy gear box, light weight and not rust 2. 2 optional worm wheel materials: Tin (Stannum) bronze or aluminum bronze alloy 3. Standard parts and very flexible for shaft configurations and motor flange interface 4. Several optional mounting options 5. Low noise, High efficiency in heat dissipation Rated Power:0.06KW~15KW Rated Torque:1.8~1760N.m Rated Ratio:5~100 Gear Arrangement:Worm Wheel & Worm Shaft Housing:Aluminum Alloy or Cast Iron Shafts Position:Right Angle INSTALLATION: Flange Mounted Foot Mounted Torque Arm Mounted LUBRICATION: Grease Lubrication Oil-bath and Splash Lubrication COOLING: Natural Cooling 1. Housing: Die-cast Aluminum Alloy Gearbox (RV025~RV090) Cast Iron Gearbox (RV110~RV150) 2. Worm Wheel: Wearable Tin (Stannum) Bronze Alloy, Aluminum Bronze Alloy 3. Worm Shaft: 20Cr Steel, carburizing, quenching, grinding, surface hardness 56-62HRC, 0.3-0.5mm remaining carburized layer after precise grinding 4. Input Configurations: Equipped with Electric Motors (AC Motor, Brake Motor, DC Motor, Servo Motor) IEC B5/B14 Motor Flange NEMA C Frame Motor Flange Solid Shaft Input 5. Output Configurations: Keyed Hollow Shaft Output Hollow Shaft with Output Flange Plug-in Solid Shaft Output 6. Options: Worm Shaft Rear Extension, Single Output Shaft, Double Output Shaft, Output Flange, Torque Arm, Dust Cover 7. Gearbox Painting: Aluminum Alloy Gearbox: After Shot Blasting, Anticorrosion Treatment and Phosphating, Paint with the Color of RAL 5010 Gentian Blue or RAL 7035 Light Grey Cast Iron Gearbox: After Painting with Red Antirust Paint, Paint with the Color of RAL 5010 Gentian Blue
