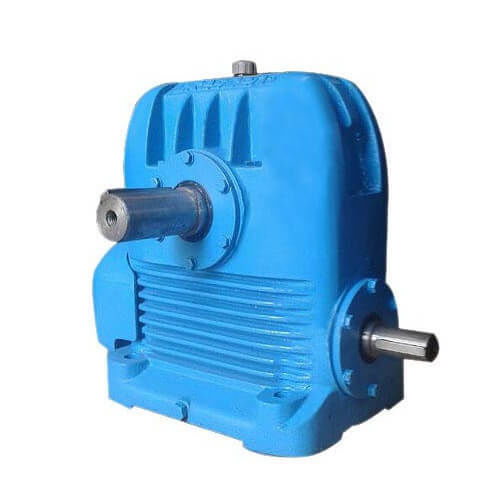

Worm gearbox WP series

right anglecompactflange

FEATURES: 1. Different variants, both input and output shafts can be mounted horizontally or vertically 2. Compact structure 3. Direct drive or indirect drive available 4. Output could be solid shaft or hollow hole Frame Sizes:40~250 Center Distance:40~250 mm Gear Ratio:10~60 Gear Arrangement: Worm Gears Shaft Arrangement: Right Angle APPLICATIONS: Plastic Extruders Rubber Extruders Single Screw Extruders (ZLYJ/ZSYJ Series Extruder Gearbox) Conical Twin Screw Extruders (SZ Series Extruder Gearbox) INSTALLATION: Horizontal Mounted Vertical Mounted LUBRICATION: Oil Dip and Splash Lubrication Forced Lubrication (Additional Oil Pump) COOLING: Natural Cooling Auxiliary Cooling Devices 1. Housing: Cast Iron 2. Gears: Worm Gears, 1 stage 3. Input Configurations: Solid Input Shaft Motor Flange – IEC B5 4. Output Configurations: Solid Output Shaft Hollow Output Shaft WPA Series – Lower Input Shaft WPS Series – Upper Input Shaft WPDA Series – Lower Input Flange WPDS Series – Upper Input Flange WPO Series – Vertical Upward Output Shaft WPX Series – Vertical Downward Output Shaft WPDO Series – Vertical Upward Output Shaft, Input Flange WPDX Series – Vertical Downward Output Shaft, Input Flange
