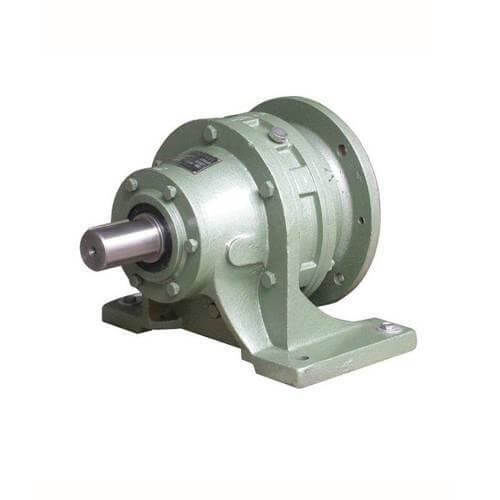

Cycloidal gear reducer WB seriescoaxial20 - 50 Nm200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- cycloidal
- Shaft orientation
- coaxial
- Torque
- 20 - 50 Nm, 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm
- Applications
- for electric motors
- Other characteristics
- aluminum
- Power
Max.: 3 kW
(4.08 hp)Min.: 0.04 kW
(0.05 hp)
Description
1. WB series cycloidal reducers have the same features and characteristics with X & B series cycloidal reducers. The differences are WB series cycloidal reducers have smaller sizes and power
2. Grease lubrication, oil leak is not possible
3. Multiple mounting options
Rated Power:0.04~3KW
Max. Torque:25~250N.m
Gear Arrangement: Cycloid & Pin Wheel
Shafts Position:Coaxial / Inline
Ratio:9~1849
Installation Form: Foot, Flange Mounted
Installation:
Foot Mounted
Flange Mounted
Lubrication:
Grease Lubrication
Cooling:
Natural Cooling
1. Housing: Aluminum Alloy
2. Gearset: Cycloid Wheel & Pin Wheel
3. Input Configurations:
Equipped with Electric Motors (3 Phase AC Motor, Single Phase AC Motor, Brake Motor, Servo Motor)
IEC-normalized Motor Flange
Keyed Solid Shaft Input
4. Output Configurations:
Keyed Solid Shaft Output
