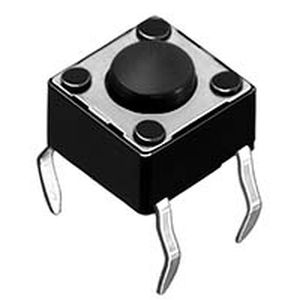

Touch push-button switch TS 6x seriesIP65momentary
Add to favorites
Compare this product
Characteristics
- Type
- touch
- Protection level
- IP65
- Other characteristics
- momentary
Description
rating:12 V DC, 50 mA
Contact resistance: 100MQat 500 V DC
Dielectric strength:250 V, 50 Hz for the duration of 1 minute
Operating temperature:-40 °Cto+85 °C
Electrical life:1.0 N /1.6 N: minimum 200 000 cycles 2.6 N minimum 100 000 cycles 3.2 N/5.2 N: minimum 50000cydes
Operating force:see ordering code
Contacts:phosphor bronze, silver-plated
Terminals:PC terminals, brass, silver-plated
Material:cover: stainless steel base and stem: nylon meets UL 94 V-0; caps ABS
Mounting:on pc-board
Soldering conditions:hand-soldering - max.: 30 W, 2 sec, 320 °C wave-soldering - max.: 5 sec, 260 °C subject to PCB 1.6 mm thickness
Travel:0.25 mm + 0.2/- 0 1 mm
