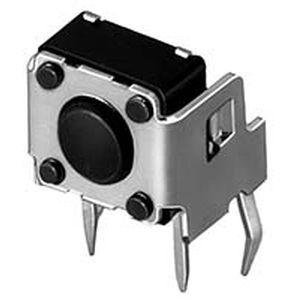

Touch push-button switch TS 6x-RA seriesIP65momentary
Add to favorites
Compare this product
Characteristics
- Type
- touch
- Protection level
- IP65
- Other characteristics
- momentary
Description
rating: 12 V DC, 50 mA
Contact resistance: 100 MΩ at 500 V DC
Dielectric strength: 250 V, 50 Hz for the duration of 1 minute
Operating temperature: –40 °C to +85 °C
Electrical life: 1.0 N/1.6 N: minimum 200 000 cycles
2.6 N: minimum 100 000 cycles
3.2 N/5.2 N: minimum 50 000 cycles
Operating force: see ordering code
Contacts: phosphor bronze, silver-plated
Terminals: PC terminals, brass, silver-plated
Material: cover: stainless steel
base and stem: nylon meets UL 94 V–0; caps ABS
Mounting: on pc-board
Soldering conditions: hand-soldering – max.: 30 W, 2 sec, 320 °C
wave-soldering – max.: 5 sec, 260 °C
subject to PCB 1.6 mm thickness
Travel: 0.25 mm + 0.2/– 0.1 mm
