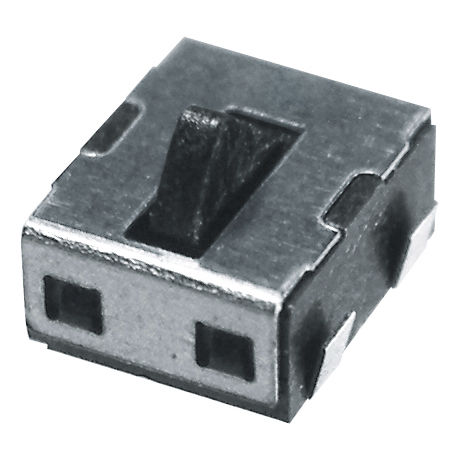

Miniature limit switch DTS 201 C P-T

Miniature limit switch - DTS 201 C P-T - KNITTER SWITCH
Miniature limit switch - DTS 201 C P-T - KNITTER SWITCH
Add to favorites
Compare this product


Characteristics

Size
miniature

Description

rating:5V DC, 1 mA (DTS 226 C-T: 10 mA) Contact resistance: 100 MQ Dielectric strength100 V. 50 Hz for the duration of 1 minute Operating temperature:- 40 °C to + 85 °C (DTS 226 C-T: +15 to + 35 °C) Operating force:< 0.5 N Mechanical life:minimum 100 000 operations (DTS 226 C-T: 50 000) Material:Contacts: phosphor-bronze, silver-plated Terminals: brass (DT 226 C-T: phosphor bronze), silver-plated Case and actuator: LCP
