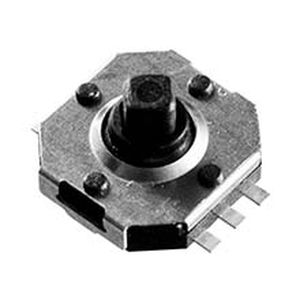

Touch switch TSJ/TSSJ seriesDCelectromechanical
Add to favorites
Compare this product
Characteristics
- Type
- touch
- Other characteristics
- DC, electromechanical
- Primary current
20 mA
- Voltage
15 V, 100 V
Description
rating:15 V DC, 20 mA
Contact resistance:100 MQ
Dielectric strength:100 V, 50 Hz for the duration of 1 minute
Operating temperature:-25 °C to +70 °C
Mechanical life:minimum 50000 cycles per direction
Contacts:phosphor bronze silver-plated
Mounting:TSJ 31 : on pc-board
TSSJ 30: on pc-board - SMD
Soldering conditions:TSJ 31 : auto-soldering: 255 °C, 5 sec max.
TSSJ 30: reflow-soldering: 245 °C, 2.5 sec max.
Packing:300 pcs/tray
