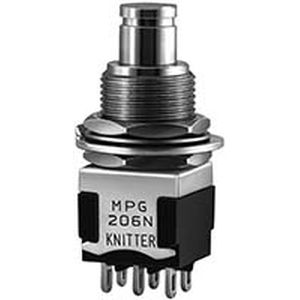

Touch push-button switch MPG series

standardelectromechanicalDC

Specifications: Contact rating: 250 V AC, 3 A / 125 V AC, 6 A 30 V DC, 4 A / 12 V DC, 5 A 6 V DC, 6 A Contact resistance: 1000 MΩ at 500 V DC Dielectric strength: 1500 V, 50 Hz for the duration of 1 minute Operating temperature: – 45° to +140° C Mechanical life: minimum 30000 operations Contacts: coin silver (common contact copper alloy, silver-plated) also available gold-plated, Terminals: solder tags, copper alloy silver-plated Material: case: diallyl-phthalate meets UL 94 V–0, black metal parts: nickel-plated Mounting: bushing 15/32-32 THD (M 12 x 0,75), key 14 mm Soldering conditions: hand-soldering – max.: 60 W, 3 sec, 420º C auto-soldering – max.: 5 sec, 270º C
