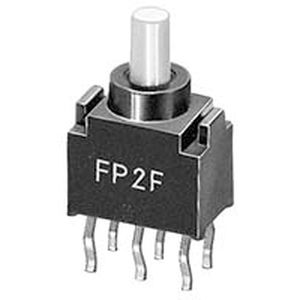

Touch push-button switch FP SerieselectromechanicalstandardDC
Add to favorites
Compare this product
Characteristics
- Type
- touch
- Other characteristics
- electromechanical, standard, DC, miniature
Description
Specifications:
Contact rating: max. 28 V DC, 0,4 VA
min. 20 mV DC, 1 μA
Contact resistance: 500 MΩ at 250 V DC
Dielectric strength: 250 V, 50 Hz for the duration of 1 minute
Operating temperature: – 20° to + 80° C
Mechanical life: minimum 30 000 operations
Contacts: phosphor bronze, gold-plated
Terminals: PC terminals, crimped, phosphor bronze gold-plated
Material: case and button: PES, meets UL 94 V–0, washable
Mounting: on pc-board
Soldering conditions: auto-soldering – max.: 7 sec, 250° C ± 5° C
auto-soldering – max.: 5 sec, 270° C ± 5° C
ESD resistance: > 8 kV (between button and terminals)
