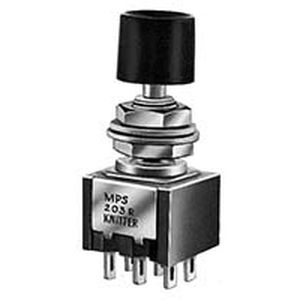

Touch push-button switch MPS serieselectromechanicalsnap-actionDC
Add to favorites
Compare this product
Characteristics
- Type
- touch
- Other characteristics
- electromechanical, snap-action, DC
Description
Specifications:
Contact rating: 125 V AC, 3 A
30 V DC, 1 A / 12 V DC, 2 A / 6 V DC, 3 A
Contact resistance: 1000 MΩ at 500 V DC
Dielectric strength: 1000 V, 50 Hz for the duration of 1 minute
Operating temperature: 20° to + 80° C
Mechanical life: minimum 500000 operations
Contacts: coin silver (common contact copper alloy, silver-plated)
also available gold-plated version B (see page 4)
Terminals: solder tags, copper alloy silver-plated
Case material: phenol resin, black
Mounting: bushing M 6 x 0,75 with locking plate, key 9 mm
Soldering conditions: hand-soldering max.: 60 W, 3 sec, 420º C
