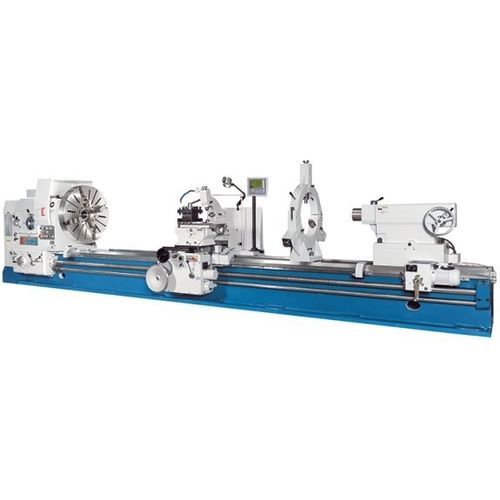

Conventional lathe DL E 620/8000

horizontal3-axisfor heavy turning

With the machines of the DL E Heavy series, you can machine really large turning diameters and workpiece lengths. This lathe series is the solution for conventional machining of workpieces up to 8000 mm (315 in.) in length and over 1600 mm (63 in.) in diameter. The particularly wide and heavily ribbed machine bed takes heavy workpiece weights. Powerful motors drive the main spindle via a finely adjustable multi-disc clutch. The rapid traverse in the support is particularly effective with large bed lengths and the heavy tailstock is also moved with a motor drive. Center widths up to 8000 mm Rapid feed in X and Z directions Induction hardened and ground guideways Sturdy multi-disk clutch for headstock drive Separate rapid feed motor for feed in X and Z direction Joystick control for X and Z feeds is mounted directly to support Motorized positioning of tailstock (all models with a minimum center width of 3000 mm) Large spindle bearings Includes completely assembled 3-axis position indicator Overload clutch enclosed in apron More accuracy Lower error rate Increased productivity Resulting in valuable time savings For increased productivity Easy to read display Operator-specific features Convenient keyboard layout Resolution: 0.01/ 0.005 mm Default coordinates Axis position is maintained when display is turned off Hole circle pattern calculation Calculator function Storage for 10 tools Radius / diameter toggle Mm/inch conversion Easy expansion and maintenance-free operation Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes
