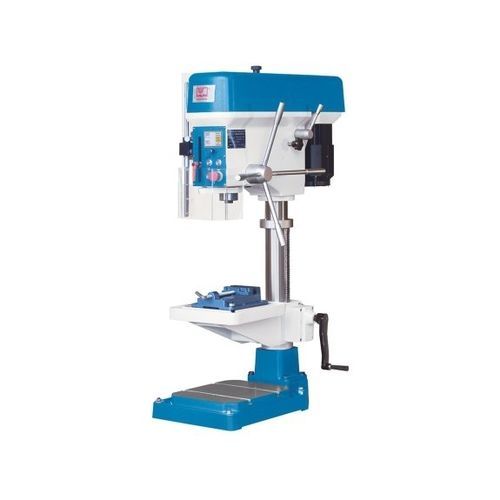

Drill press KB 20 SV
electriccompactvariable-speed

Drill press - KB 20 SV - Knuth Machine Tools - electric / compact / variable-speed
Drill press - KB 20 SV - Knuth Machine Tools - electric / compact / variable-speed
Drill press - KB 20 SV - Knuth Machine Tools - electric / compact / variable-speed - image - 2
Drill press - KB 20 SV - Knuth Machine Tools - electric / compact / variable-speed - image - 3
Drill press - KB 20 SV - Knuth Machine Tools - electric / compact / variable-speed - image - 4
Drill press - KB 20 SV - Knuth Machine Tools - electric / compact / variable-speed - image - 5
Drill press - KB 20 SV - Knuth Machine Tools - electric / compact / variable-speed - image - 6
Drill press - KB 20 SV - Knuth Machine Tools - electric / compact / variable-speed - image - 7
Add to favorites
Compare this product


Characteristics

Type
column type
Power source
electric
Other characteristics
compact, variable-speed, vertical
Rotational speed

Min.: 205 rpm
(1,288.1 rad.min-1)

Max.: 2,045 rpm
(12,849.1 rad.min-1)

Power

1,100 W

Drilling diameter

20 mm
(0.79 in)

Description

The KB SFV Series Drill Presses are the newest versions of the robust, streamlined bench drill presses and perfectly suited for light drilling jobs. These high-quality machines feature an infinitely variable, virtually maintenance-free drive and a touchscreen control panel for quick access to all functions. This series is especially suited for single part productions and manual series batch production in workshops and industrial operations. Touchscreen for selection of functions Integrated LED work light Thread cutting unit Infinitely variable main spindle speed Modern design, high-quality cast-iron, and excellent workmanship combined with superior rigidity, function and appearance Heavy, precision-ground work table with diagonal T-slots Very smooth height adjustment of drill table, even under high loads Large base plate with ground setup area and parallel T-slots Forward and reverse, plus automatic reversal of direction for thread cutting Spindle shank and spindle are hardened and ground Robust belt drive and quiet, powerful motor Integrated LED work lamp is standard V models: Touchscreen with comfortable selection of functions, like drilling, thread-cutting, and setup operations The control unit allows querying of all limit switches and shows all functionalities, like coolant system, rpm and work lamp Standard Equipment Drill chuck Tool-holder bits Drill press vise Thread cutting function Operating tools LED work lamp Operator manual
