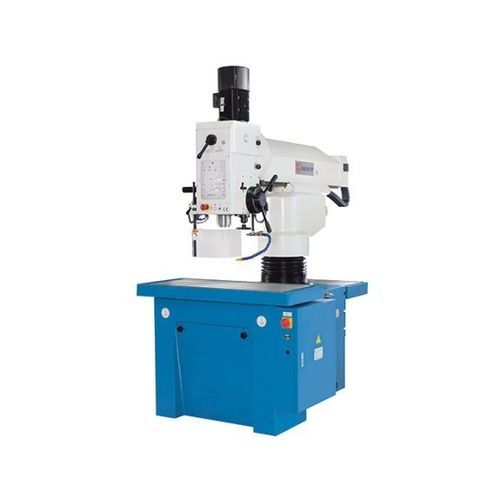

Radial drill KSR 50 VT

electricvariable-speedvertical

“Tool to the workpiece” is the motto of the high-speed radial drilling machines of the KSR series. They offer unique flexibility with clamping surfaces for different applications on three machine sides. The KSR VT also has an electronically controlled servo quill feed and a touchscreen operating display, which supports the selection of the correct machining parameters for drilling and thread cutting. The ideal solution for single and small series production, which is often used in maintenance as well as in tool and steel construction. Unique operating concept 3 work stations Expanded control of machine functions Servomotor-driven quill feed Linear guides for smooth, high-precision movement of the arm Table, column, male die and gear head are made of thick-walled high-grade cast-iron and the entire machine structure features high-quality components and precision machined surfaces The large work area can be expanded by mounting optional swivel and angle tables for a wide variety of clamping and machining options The male die features a low-maintenance, very rigid design and runs smoothly in two large linear roller guideways, allowing exact positioning with minimal effort The entire machine is extremely smooth running for effortless operation in a production environment Column and male die are equipped with hydraulic clamping fixtures Main spindle drive with 2 gear steps, infinitely variable speed in each gear step For angular bores, the drill head can be rotated 45° in either direction A central lubrication system simplifies maintenance Improved functionality and improved layout of the large touchscreen display
