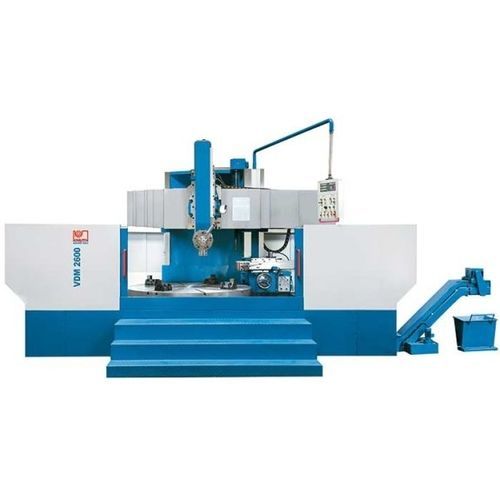

Vertical lathe VDM 2600 S

conventional3-axishigh-precision

The VDM series of vertical lathes offers modern, conventional solutions for machining large workpiece diameters and heavy workpiece weights. Their design enables particularly easy and safe loading and unloading. The feed drive is a high-torque servo motor and a powerful hydraulic system clamps the crossbeam. The main drive provides high torque for heavy machining and a side support is available for machining the outer contour. The standard mounted 3-axis position indicator ensures precision. Optimum assembly with crane and forklift Infinitely variable feed control via servo motor Long, sturdy vertical boom Side support with boom and independent feed Reduction gear drive for high torque Infinitely variable feed control via servo-motor Optimum tooling and easy access for cranes and forklift trucks Heavy-duty column with wide, hardened guideways Hydraulic clamping of cross traverse Rigid guide construction ensures maximum rigidity and accuracy of the vertical boom Spindle runs in a high-precision two-row roller bearing and is adjustable Reduction gear drive ensures high torque and a speed range of 10 - 315 rpm Servo motor technology ensures powerful, infinitely variable feed of the vertical boom
