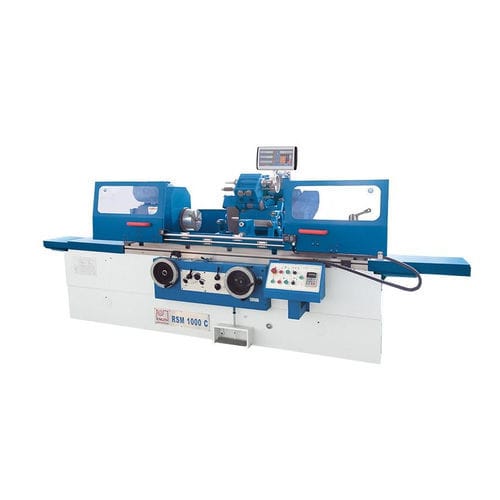

External cylindrical grinding machine RSM 1500 C

internal cylindricalworkpiececonventional

The models of the RSM C series are precision cylindrical grinding machines designed for long and heavier workpieces. The series is suitable for processing individual parts as well as for small series production and offer additional flexibility with the internal grinding device. The classic design with a large machine bed, ground guides, and powerful drives for the work spindle, grinding spindle and hydraulic unit, make these machines a cost-effective solution for the precision grinding of larger workpieces. Swiveling headstock for conical grinding of short parts Integrated rapid feed on Z-axis with manual return Extensive package of standard accessories Large machine bed in a heavy design accommodates workpieces with lengths up to 2000 mm and diameters up to 320 mm Wide, precision-ground guideways ensure maximum accuracy across the entire workpiece length and accommodate high workpiece weights The table features large dimensions and swivels in two directions - table movement via hand-wheel or automatically via linear hydraulic feed The robust feed valve allows very precise micro-feed control on the X axis, including a user-adjustable dwell time at the end of the longitudinal table travel Automatic feed in 2 steps – limited by an adjustable stop The grinding spindle features hydrostatic bearings and provides for maximum precision and surface quality, plus extraordinary tool life and rigidity The powerful grinding spindle motor is designed for continuous operation The heavy-duty spindle head swivels 30° to the left and to the right; the work spindle head swivels 45° Inside grinder included Integrated rapid feed on Z axis with manual return
