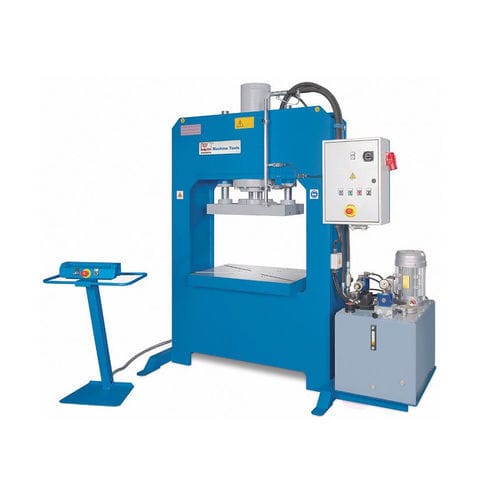

Hydraulic press KP 150 A

formingdeep drawingframe

The KP-A series consists of powerful hydraulic presses with portal frames, which are built completely in Europe using high-quality components from reputable suppliers and used for deep drawing, forming, and notching processes. The possible force ranges from 40 to 400 tons. The entire series has large ram plates on the cylinder and work table with clamping flutes for mounting tools and accessories. Mobile 2-hand operation guarantees safety, and the travel distance is defined with adjustable limit switches. We also offer customized solutions that are based on individual customer requirements. Made in Europe For test and series production Multi-shift operation possible Industry 4.0 integration possible Customised solutions on request Working area Table dimensions - 1200 mm x 700 mm Ram-plate size - 1000 mm x 400 mm Throat width - 1250 mm Stroke speed - 3 mm/s Rapid feed Rapid feed - 22 mm/s Made in Europe - perfectly welded frame steel construction for high rigidity, designed for maximum machine force Hydraulic presses are extremely versatile due to their distance/time flexibility of the stroke A large hydraulic cylinder moves the thick ram plate, stabilized by heavy-duty self-lubricating circular guides Work table and ram plate feature T-slots for tool clamping A mobile control panel provides flexibility, while additional controls are easily accessible integrated in the control cabinet 2-step hydraulic pump for fast rapid feeds and optimum stroke speeds Precision-machined cylinder surfaces and high-quality seals ensure low wear and long lasting reliability
