Hydraulic press HPK 70
formingdeep drawingC-frame

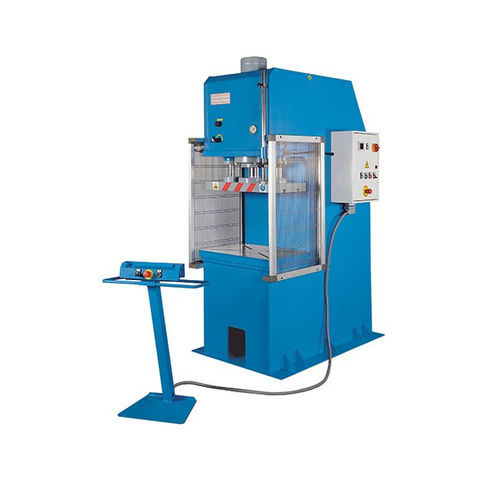

Hydraulic press - HPK 70 - Knuth Machine Tools - forming / deep drawing / C-frame
Hydraulic press - HPK 70 - Knuth Machine Tools - forming / deep drawing / C-frame
Hydraulic press - HPK 70 - Knuth Machine Tools - forming / deep drawing / C-frame - image - 2
Hydraulic press - HPK 70 - Knuth Machine Tools - forming / deep drawing / C-frame - image - 3
Hydraulic press - HPK 70 - Knuth Machine Tools - forming / deep drawing / C-frame - image - 4
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
forming, deep drawing
Structure
ram, C-frame
Control
automatic
Other characteristics
vertical
Force

70 tf

Stroke

500 mm
(19.685 in)

Working speed

5 mm/s

Hydraulic pump power

4 kW

Weight

2,100 kg
(4,630 lb)

Overall length

1,500 mm
(59 in)

Overall width

1,000 mm
(39 in)

Overall height

2,500 mm
(98 in)

Description

The HPK A series is a series of hydraulic presses with a C-shaped design for deep drawing, forming, and notching processes. These machines are manufactured in Europe, and all components and parts meet extremely strict quality requirements. The possible force ranges from 40 to 300 tons. The entire series has large ram plates on the cylinder and work table with clamping flutes for mounting tools and accessories. Mobile 2-hand operation guarantees safety, and the travel distance is defined with adjustable limit switches. We also offer customized solutions that are based on individual customer requirements. Classic design with c-frame Completely built in Europe for high reliability Designed for testing or batch production Possibility of Industry 4.0 integration Customized solution available Made in Europe - perfectly welded C-frame steel construction for high rigidity, designed for maximum machine force Large ram plates and work tables to ensure large tools or multiple setups Hydraulic presses are extremely versatile due to their distance/time flexibility of the stroke A powerful hydraulic cylinder and two self-lubricating circular guides ensure precise and uniform feed of the ram plate during press operations Precision-machined cylinder surfaces and high-quality seals ensure low wear and long lasting reliability Rapid adjustment of stroke length via easy to set stops Space saving hydraulic system located accessibly inside the frame 2-step hydraulic pump for fast rapid feeds and optimum stroke speeds Ram plate and work table with t-slots for tool clamping
