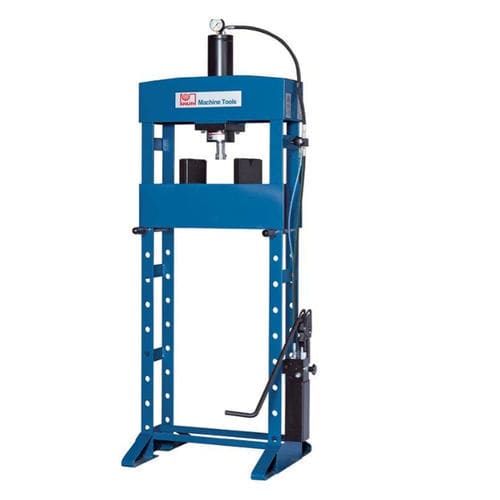

Manual press KNWP 30 M
hydraulicstraighteningassembly

manual press
manual press
manual press
manual press
manual press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic, manual
Function
straightening, assembly
Structure
frame
Control
automatic
Other characteristics
vertical
Applications
repair
Force

30 tf

Stroke

160 mm
(6.299 in)

Hydraulic tank volume

2 l
(1 gal)

Weight

150 kg
(331 lb)

Overall length

830 mm
(33 in)

Overall width

640 mm
(25 in)

Overall height

2,005 mm
(79 in)

Description

These manual hydraulic workshop presses are built in Europe and are suitable for general assembly and straightening work or for testing workpieces. They enable safe and professional work and are mainly used in mechanical workshops, garages and locksmiths. High quality Made in Europe With hand and foot control Adjustable table height Material support included For any repair and installation work, e.g.: Removal and installation of press-fit bearings, bolts and bushings Straightening beams, shafts, axles and sections Pressing and crimping Load tests and weld sample testing Straightening of workpieces Material testing Rigid machine frame freaturing a carefully machined weldment structure Hydraulic pump can be operated by hand or foot control 2-step hydraulics - with change-over switch for changing between quick-stroke and work stroke Automatic reset of piston, controllable by user via throttle valve and spring The support table features a rigid design, but is easy to handle with adjustable height Includes multi-function die for straightening flat material and corrugation Table lifting system
