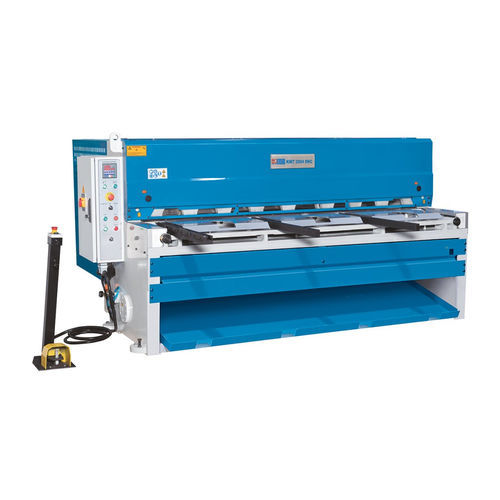

Electric shear KMT RNC 3004

sheet metalguillotineautomatic

This model is part of the KMT RNC series and is an advanced, precision-machined plate shearing machine with premium components. It features a powerful drive for superior cutting performance. The rigid construction with sliding-block guided cutter bar and a straight cutting angle enables cuts with minimal torsion in the workpiece. The kerf can be adjusted manually, and back gauge positioning is NC-controlled. Handling plate sections is simplified enormously by the integrated Return-to-Sender function. Solid steel weldment with sliding block guide NC-controlled back gauge can be easily programmed Cutter for stainless steel machining included Reversible cutters with multiple cutting surfaces Adjustable kerf Return-to-Sender function Machine Frame The machine frame is made of a very rigid, solid steel weldment and the cutter bar is sliding-block guided The high-precision guide ensures clean cuts and special cutters for machining stainless steel plates are included The upper cutters are reversible for use of both sides, and the lower cutters feature 4 cutting edges A rigid, continuous hold-down fixes the sheet metal plate right in front of the cut line The optimum kerf for machining can be adjusted manually Ergonomic Design The “Return-to-Sender” function is an innovative plate shears feature that returns the cut off metal sheet automatically back to the operator position. This function provides increased process efficiency and operator safety The rigid side angle stop simplifies precise alignment of the plate perpendicular to the cut line Rugged support arms ensure a strong hold of large plates
