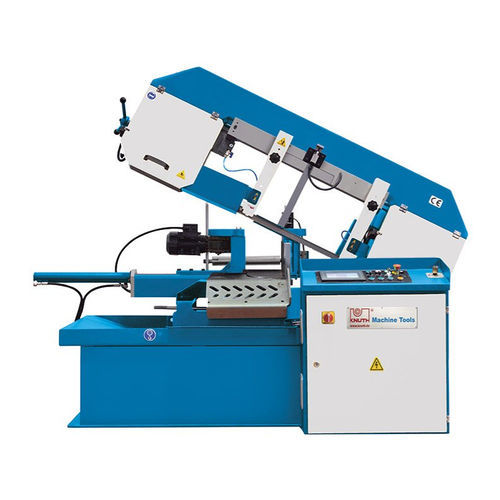

The ABS 350 C is a robust fully automatic band saw designed for maximum reliability. The model impresses with high-quality components and a heavy, solid machine frame. The automatic feed via driven rollers in the clamping jaws enables continuous operation, perfect for single piece and series production. The angle cutting feature increases its versatility, allowing it to cover a wider range of applications.
Vice with feed rollers
Angle cutting possibility for increased versatility
Facile operation via touchscreen
Height adjustment with switch to speed up the cutting process
Workpiece counter to facilitate continuous production
Manual top vise for bundle cutting
The ABS 350 C is a fully automated horizontal miter band saw for series production of solid materials, tubes and profiles
In the vise integrated rollers feed the material
This efficient and cost-effective solution has a proven record, is very robust and provides precise cuts
The saw frame features excellent stability and vibration-damping characteristics, and can be rotated manually up to 45°
Very rigid adjustable carbide saw blade guide ensures high vertical angle accuracy
Saw blade stroke and workpiece clamping are hydraulically driven
Saw blade feed via micro-adjustable hydraulic valve
Switches and controls are conveniently arranged on a stand-alone control panel
The touchscreen allows for easy and convenient programming for fully automated operation
A motor with infinitely variable speeds transmits power via a continuous-operation idler gear to the blade drive wheel
The correct saw blade tension can be checked at the pressure gauge display
