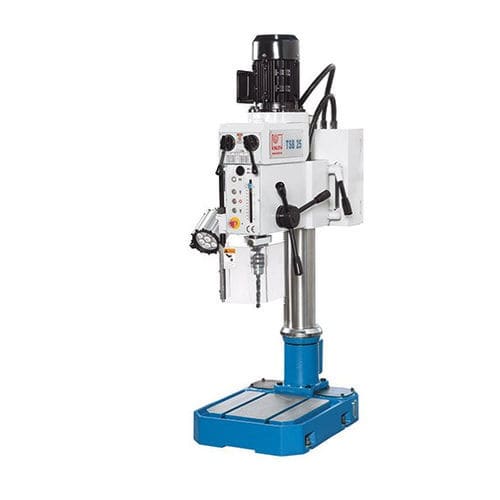

Vertical drilling machine TSB 25

column typetable typefor steel

The TSB bench drill series impresses with its compact dimensions and high drilling performance for a wide range of applications. They are suitable for every workshop, from steel construction to repair shops. The machines have a main spindle gearbox for high torque and a particularly wide speed range. A swiveling drill head enables drilling at an angle. The TSB 35 also has an automatic quill feed for large drilling diameters. Swiveling drill head Manual transmission for high torque Working area Foot set up area (length x width) - 310 mm x 320 mm Vertical head travel - 470 mm Spindle nose-to-foot distance - 650 mm Throat - 240 mm Column diameter - 95 mm Headstock Spindle mount - 3 MT Quill stroke - 110 mm Feed Quill feeds - - mm/R Measures and weights Overall dimensions (length x width x height) - 0,7 m x 0,41 m x 1,56 m High Power at a Low Price Throat 240 mm Spindle nose-to-foot distance 650 mm Spindle mount MT 3 Rigid cast-iron construction Height-adjustable machine head 6 speed steps Rectangular table with T-slots and circumferential coolant groove Standard Equipment Base Protective shield LED work lamp Drill chuck Operating tools Operator instructions
