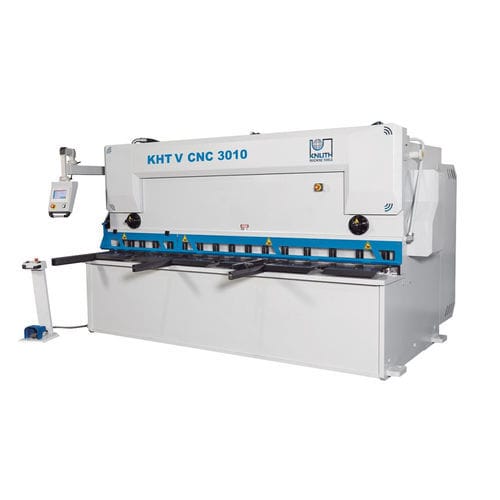

Electric shear KHT V 3010

sheet metalguillotineCNC

The guillotine shears of the KHT V CNC series are produced in a state-of-the-art manufacturing facility. The construction with a guided cutter bar with adjustable cutting angle guarantees minimal twisting in the workpiece and thus reduces rework. The control is operated on a touchscreen. Cutting gap, cutting angle and cutting length are automatically optimally positioned. The high-quality backgauge is robust and precise, and the standard blades are suitable for stainless steel. Additional accessories expand the range of applications of the guillotine shears. Cybelec Touch 8 control Controlled back gauge with preloaded ball screw Controlled kerf adjustment Controlled cutting angle adjustment Knife suitable for stainless steel These guided hydraulic plate shears with CNC-controlled back gauge, kerf and cutting angle combine high quality and reliability with a user-friendly design Machine Frame The very rigid and heavy machine frame has been welded to tight tolerances and annealed The machine frame has been machined on a state-of-the-art 5-axis milling machine in one single setup to ensure more precise cuts and extended life All components subject to tensile loads have been carefully constructed and designed with large radii to permanently eliminate the risk of cracking The table features a bottom cutter mount and cutter bar and has been designed for minimal torsion and optimum load distribution All components were treated in a modern paint and drying system and feature two coats of paint, each coat with a minimum thickness of 60 micron
