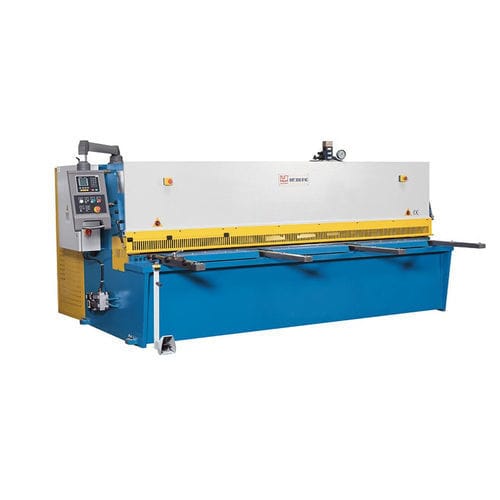

Hydraulic shear KHT 4010 M NC
sheet metalswing-beam

hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Application
sheet metal
Type
swing-beam
Plate thickness

1 mm, 6 mm, 10 mm
(0 in, 0.2 in, 0.4 in)

Working length

4,000 mm
(157.48 in)

Pressing force

36 tf

Description

The models from the KHT M NC series are built under a swing-beam design. The cutting bar is guided in a pivot bearing anchored in the machine body making cuts very straight without the risk of upper and lower blades jamming. The robust back gauge precisely positioned via the ESTUN 21 NC controller. Estun E21 NC control Back gauge with preloaded ball screws gauge Pneumatic plate hold-up feature Cutter also suitable for stainless steel Adjustable angular stop The hydraulic Swing-Beam Shears with NC-controlled back gauge combines quality, reliability and easy handling Machine Frame The machine frame is made of a stress-relieved steel weldment and features a swing-beam design With this design, the cutter beam travels in a swinging movement so that the distance between upper and lower knife will be restored automatically after each cut The advantages of this design are low-torsion cuts, a more reliable release of cut parts, extended knife life, and easy kerf adjustments Material Support The large work table features roller balls and a rigid adjustable angular stop for easy handling and safe plate alignment Long, sturdy support arms safely hold large plates The entire hydraulic system is reliable, low-maintenance and easy to service During the cut, hydraulically regulated hold-downs ensure steady fixation of the sheet metal plate close to the cut-line
