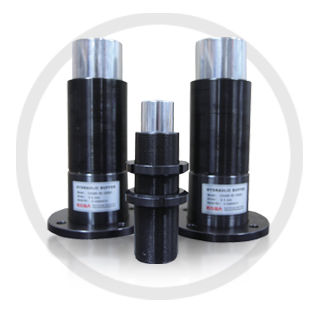

Shock buffer KES series
visco-elasticmechanicalfor automobiles

shock buffer
shock buffer
Add to favorites
Compare this product


Characteristics

Function
shock
Technology
visco-elastic, mechanical
Applications
for automobiles, gas, rod, handling, marine
Material
steel, zinc, paper
Other characteristics
piston, compact
Load capacity

Min.: 6 kN

Max.: 1,100 kN

Stroke

Min.: 12 mm
(0.47 in)

Max.: 1,300 mm
(51.18 in)

Description

• KES series is designed and developed to use the unique hydrostatic compression characteristics of special Visco-elastomers. KES has compact and reliable design and high damping coefficient. KES has advantage to get energy absorption and return spring function in a single unit without additional gas or mechanical spring return mechanism. It is allowed to use various range of temperature with stable damping force. • Max. impact velocity : 5m/sec • Temperature : -40 ℃ ~ 80℃ • Piston Rod : Hard Chrome( over 25µ) • Body and Mount : Zinc, Ni plated, • Application : Automobile, Steel production, defense, Railway, Pulp, Paper, Marine, material handling, etc

Catalogs
