Crawler crane CKE800G-3
boomfor constructionlifting

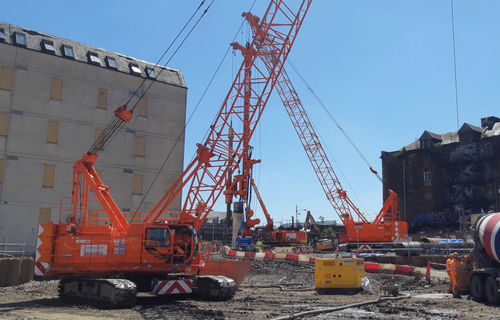

Crawler crane - CKE800G-3 - Kobelco Construction Machinery Europe B.V. - boom / for construction / lifting

Crawler crane - CKE800G-3 - Kobelco Construction Machinery Europe B.V. - boom / for construction / lifting - image - 2

Crawler crane - CKE800G-3 - Kobelco Construction Machinery Europe B.V. - boom / for construction / lifting - image - 3

Add to favorites

Compare this product

Characteristics

Configuration: crawler
Structure: boom
Operating environment: for construction
Applications: lifting
Other characteristics: hydraulic
Lift capacity: 80 t
(88.2 us ton)
Working height: 54.9 m
(180'01" )
Horizontal reach: 54.9 m
(180'01" )
Hoisting speed at max load: 120,000 mm/min
(78.74 in/s)
Driving speed: 1.1 km/h, 1.7 km/h
(0.7 mph, 1.1 mph)
Drive engine power: 213 kW
(290 hp)
Swing speed: 4 rpm
(25.133 rad.min-1)
Total counterweight: 27.18 kg
(59.922 lb)
Width (base): 5,130 mm
(202 in)
Total weight: 75,700 kg
(166,890 lb)

Description

CRANE BOOM Max. Lifting Capacity: - 80 t × 3.0 m Max. Length: - 54.9 m FIXED JIB Max. Lifting Capacity: - 6.6 t × 20.0 m Max. Combination: - 42.7 m + 18.3 m, 45.7 m + 12.2 m MAIN & AUX. WINCH Max. Line Speed: - 120 m/min (1st layer) Rated Line Pull (Single Line): - 78 kN {8.0 tf} Wire Rope Diameter: - 22 mm × 220 m Wire Rope Length: - 220 m (Main), 130 m (Aux.) Brake Type: - Wet-type multiple disc brake (Optional) POWER PLANT Model: - HINO J08E-YD Engine Output: - 213 kW / 2,100 min-1 Fuel Tank Capacity: - 400 liters WORKING SPEED Swing Speed: - 4.0 min-1 {rpm} Travel Speed: - 1.73 / 1.1 km/h HYDRAULIC SYSTEM Main Pumps: - 3 variable displacement Max. Pressure: - 31.9 MPa {325 kgf/cm2} Hydraulic Tank Capacity: - acity 440 liters
