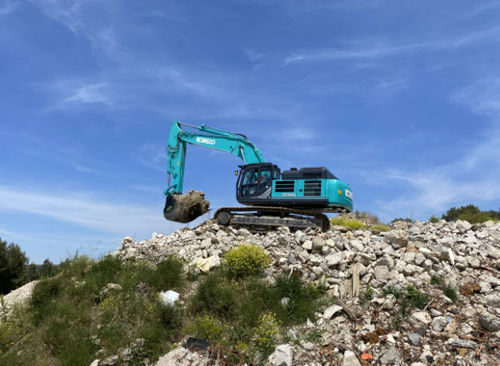

Large excavator SK500LC-11

crawlerdiesel

ENGINE Model: - HINO E13CYM Type: - Water-cooled, 4-cycle 6-cylinder direct injection type diesel engine with intercooler turbo-charger (Stage V-compliant engine) Displacement: - 12.913 L Rated power output: - 1,900 min-1 (ISO 14396) DIGGING FORCE Bucket digging force (Standard): - 288 / 312* Arm crowding force (Standard): - 247 / 270* Power boost engaged: - UNIT = kN / * Power Boost engaged HYDRAULIC SYSTEM Type: - Two variable displacement piston pumps + fan pump + pilot pump Max. discharge flow: - 2 x 370 L/min, 1 x 63.5 L/min, 1 x 20 L /min Relief Valve Setting: - 31.4 Mpa (Boom, arm and bucket) Hydraulic Oil tank: - 371 L tank oil level, 631 L hydraulic system Power Boost: - 34.3 Mpa TRAVEL FORCE Travel motors: - Variable displacement piston, two-speed motors Travel shoes: - 50 each side Swing speed: - 7.5 min-1 Drawbar pulling force: - 415 kN (SAE) Gradeability: - 70 % {35°}
