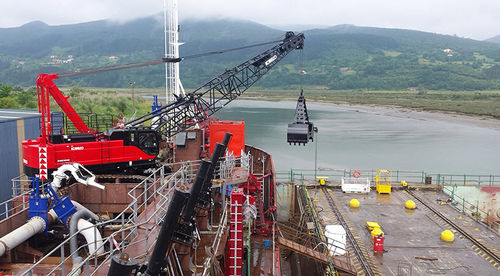

Crawler crane BME800G-2boomtransporthydraulic
Add to favorites
Compare this product
Characteristics
- Configuration
- crawler
- Structure
- boom
- Applications
- transport
- Other characteristics
- hydraulic
- Lift capacity
80 t
(88.2 us ton)- Horizontal reach
54.9 m
(180'01" )- Hoisting speed at max load
120,000 mm/min
(78.74 in/s)- Driving speed
1.2 km/h, 1.7 km/h
(0.7 mph, 1.1 mph)- Drive engine power
271 kW
(368 hp)- Swing speed
4 rpm
(25.133 rad.min-1)- Total counterweight
25,400 kg
(55,997.415 lb)- Total weight
77 t
(85 us ton)
Description
MAIN & AUX. WINCH
Rated Line Pull (Single Line): - 108 kN {11.0 tf}
Wire Rope Diameter: - 26 mm × 175 m
Wire Rope Length: - 175 m (Main), 130 m (Aux.)
Brake Type: - Wet-type multiple disc brake (Standard)
POWER PLANT
Model: - HINO P11C-VN
Engine Output: - 1,850 min-1 {rpm}
Fuel Tank Capacity: - 400 liters
WORKING SPEED
HYDRAULIC SYSTEM
Main Pumps: - 3 variable displacement
Max. Pressure: - 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity: - 430 liters
WEIGHT
Ground Pressure: - 87.2 kPa
Transport Weight: - 41,700 kg
