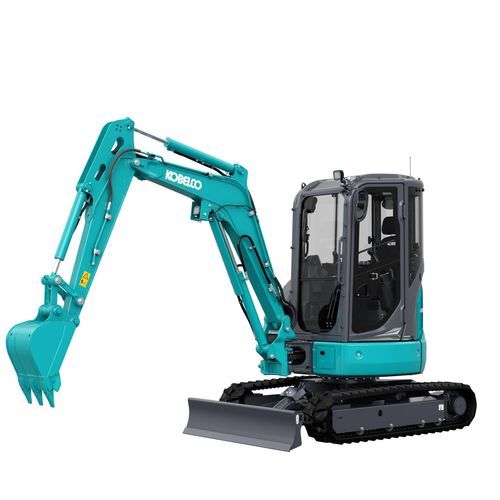

Mini excavator SK28SR-7

mediumcrawlerdiesel

Engine Model: - YANMAR 3TNV88 Type: - Four-cycle, water-cooled, direct injection diesel engine, complies with EU Stage V exhaust emission regulation Fuel tank: - 42.0 L Displacement: - 1.642 L Rated power output: - 18.9 kW / 2,400 min-1 (ISO14396) Hydraulic system Type: - Two variable displacement axial piston pumps + one gear pump + pilot pump Max. discharge flow: - 2x 28.8, 1x 16.1, 1 x 10.8 L/min Relief Valve Setting: - 23.0 MPa (Boom, arm and bucket) Hydraulic Oil tank: - 20.4 L tank oil level, 44.8 L hydraulic system Digging force Bucket digging force (Standard): - 24.7 kN Arm crowding force (Standard): - 16.6 kN Arm crowding force (Long): - 14.2 kN Standard arm: - 1.18 m Long arm: - 1.48 m Travel Force Travel motors: - Two Variable displacement piston motor Travel speed: - 3.8/2.1 km/h Swing speed: - 8.2 min-1 Drawbar pulling force: - 34.7 kN (Cab) / 34.8 kN (Canopy) Gradeability: - 58% {30°}
