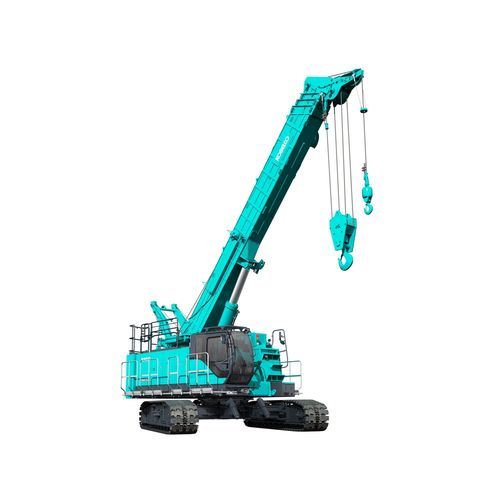

Crawler crane TKE750Gboomfor constructionlifting
Add to favorites
Compare this product
Characteristics
- Configuration
- crawler
- Structure
- boom
- Operating environment
- for construction
- Applications
- lifting
- Other characteristics
- hydraulic
- Lift capacity
75 t
(82.7 us ton)- Working height
30.1 m
(98'09" )- Driving speed
1.1 km/h, 1.6 km/h
(0.7 mph, 1 mph)- Drive engine power
254 kW
(345 hp)- Swing speed
1 rpm
(6.283 rad.min-1)- Total weight
70 t
(77 us ton)
Description
Crane Boom
Max. Lifting Capacity: - 75 t x 3.0 m
Max. Length: - 30.1 m
Main & Aux. Winch
Max. Line Speed: - 110 m/min (Single line on 1st layer)
Rated Line Pull (Single Line): - 68.6 kN {7.0 tf}
Wire Rope Diameter: - 22 mm
Wire Rope Length: - 170 m (Main), 75 m (Aux)
Brake Type: - Wet-type multiple disc brake
Power Plant
Model: - MERCEDES-BENZ E9H01 (Daimler OM936LA)
Engine Output: - 254 kW / 2000 min-1
Fuel Tank Capacity: - 400 liters
Working Speed
Swing Speed: - 2.5 min-1 {rpm}
Travel Speed: - 1.6 / 1.1 km/h
Hydraulic System
Main Pumps: - 2 variable plunger pumps + 2 gear pumps
Max. Pressure: - 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity: - 791 liters
Weight
Operating Weight: - 70.2 t
Ground Pressure: - 83.8 kPa (0.86 kgf/cm2)
Counterweight: - 17.2 t
