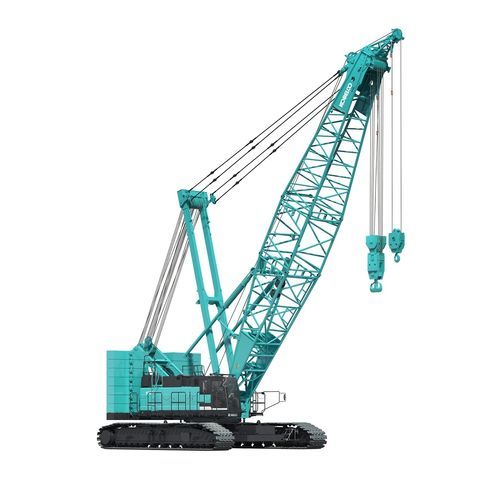

Crawler crane CKE2500G-4for constructionliftingdiesel
Add to favorites
Compare this product
Characteristics
- Configuration
- crawler
- Operating environment
- for construction
- Applications
- lifting
- Engine type
- diesel
- Other characteristics
- hydraulic
- Lift capacity
210 t
(231.5 us ton)- Working height
91.4 m
(299'10" )- Driving speed
0.5 km/h, 1 km/h
(0.3 mph, 0.6 mph)- Drive engine power
270 kW
(367 hp)- Swing speed
1 rpm
(6.283 rad.min-1)- Width (base)
7,620 mm
(300 in)- Length (base)
8,970 mm
(353.15 in)- Total weight
223 t
(246 us ton)
Description
Crane Boom
Max. Lifting Capacity: - 250 t × 4.6 m
Max. Length: - 91.4 m
Fixed Jib
Max. Lifting Capacity: - 27.0 t × 10.4 m
Max. Combination: - 76.2 m + 30.5 m
Main & Aux. Winch
Max. Line Speed: - 110 m/min (1st layer)
Rated Line Pull (Single Line): - 132 kN {13.5 tf}
Wire Rope Diameter: - 26 mm × 460 m
Wire Rope Length: - 480 m (Main) 390 m (Aux.)
Brake Type: - Wet-type multiple disc brake (Optional)
Power Plant
Model: - ISUZU 6UZ1
Engine Output: - 270 kW/2,000 min-1
Fuel Tank Capacity: - 400
Working Speed
Swing Speed: - 2.2 min-1 {rpm}
Travel Speed: - 1.0 / 0.5 km/h
Hydraulic System
Main Pumps: - 4 variable displacement
Max. Pressure: - 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity: - 550 liters
Weight
Operating Weight: - 222.8 t
Ground Pressure: - 113.4 kPa
Counterweight: - 91.0 t
Transport Weight: - 44,770 kg 3 or 46,295 kg
