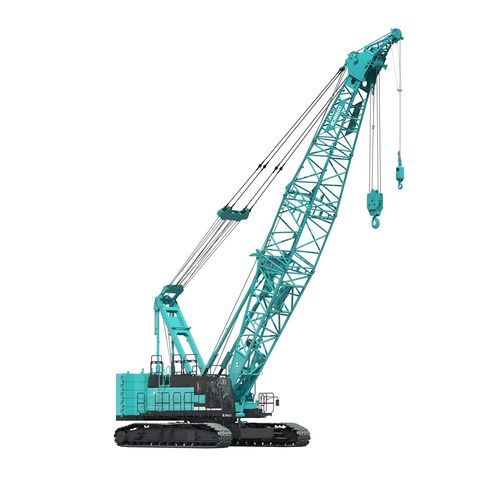

Crawler crane CKE1350G-4for constructionliftingtransport
Add to favorites
Compare this product
Characteristics
- Configuration
- crawler
- Operating environment
- for construction
- Applications
- lifting, transport
- Other characteristics
- hydraulic
- Lift capacity
26.8 t, 150 t
(29.5 us ton, 165.3 us ton)- Working height
76.2 m
(250'00" )- Driving speed
0.9 km/h, 1.3 km/h
(0.6 mph, 0.8 mph)- Drive engine power
470 kW
(639 hp)- Swing speed
1 rpm
(6.283 rad.min-1)- Total counterweight
55,000 kg
(121,254.244 lb)- Width (base)
6,310 mm
(248 in)- Length (base)
7,895 mm
(310.83 in)- Total weight
138 kg
(304 lb)
Description
Crane Boom
Max. Lifting Capacity: - 150 t × 4.4 m
Max. Length: - 76.2 m
Fixed Jib
Max. Lifting Capacity: - 26.8 t × 16.0 m
Max. Combination: - 61.0 m + 30.5 m
Main & Aux. Winch
Max. Line Speed: - 120 m/min (1st layer)
Rated Line Pull (Single Line): - 132 kN {13.5 tf}
Wire Rope Diameter: - 26 mm × 275 m
Wire Rope Length: - 275 m (Main) 255 m (Aux.)
Brake Type: - Wet-type multiple disc brake (Optional)
Power Plant
Model: - ISUZU 6UZ1
Engine Output: - 270 kW/2,000 min-1
Fuel Tank Capacity: - 400 liters
Working Speed
Swing Speed: - 2.1 min-1 {rpm}
Travel Speed: - 1.3 / 0.9 km/h
Hydraulic System
Main Pumps: - 4 variable displacement
Max. Pressure: - 31.9 MPa {325 kgf/cm2}
Hydraulic Tank Capacity: - 455 liters
Weight
Operating Weight: - 137.9 t
Ground Pressure: - 107.9 kPa
Counterweight: - 55,000 kg
Transport Weight: - 31,740 kg
