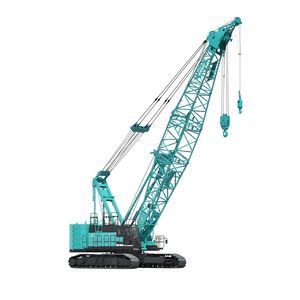

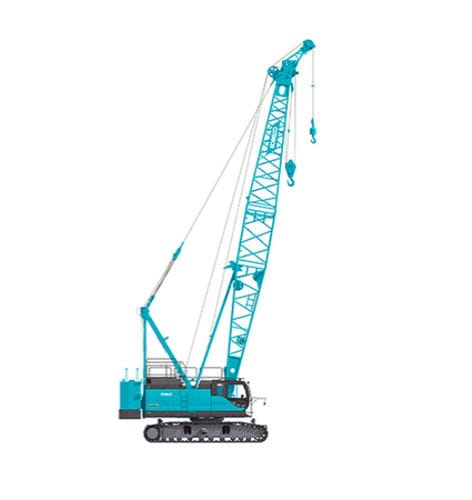

Crawler crane CKE1100G-3
for constructionliftingtransport

Add to favorites

Compare this product

Characteristics

Configuration: crawler
Operating environment: for construction
Applications: lifting, transport
Engine type: diesel
Other characteristics: hydraulic
Lift capacity: 110 t
(121.3 us ton)
Working height: 70.1 m
(229'11" )
Driving speed: 1 km/h, 1.4 km/h
(0.6 mph, 0.9 mph)
Drive engine power: 213 kW
(290 hp)
Swing speed: 3.2 rad.min-1
(0.509 rpm)
Total counterweight: 32,600 kg
(71,870.697 lb)
Width (base): 5,300 mm
(209 in)
Length (base): 6,770 mm
(266.54 in)
Total weight: 102 t
(112 us ton)

Description

Crane Boom Max. Lifting Capacity: - 110 t × 3.6 m Max. Length: - 70.1 m Fixed Jib Max. Lifting Capacity: - 10.9 t × 22.0 m Max. Combination: - 61.0 m + 21.3 m Main & Aux. Winch Max. Line Speed: - 120 m/min (1st layer) Rated Line Pull (Single Line): - 108 kN {11.0 tf} Wire Rope Diameter: - 26 mm × 265 m Wire Rope Length: - 265 m (Main), 235 m (Aux.) Brake Type: - Wet-type multiple disc brake (Optional) Power Plant Model: - HINO J08E-YD Engine Output: - 213 kW / 2,100 min-1 {rpm} Fuel Tank Capacity: - 400 liters Working Speed Swing Speed: - 3.2 min-1 {rpm} Travel Speed: - 1.4 / 1.0 km/h Hydraulic System Main Pumps: - 4 variable displacement Max. Pressure: - 31.9 MPa {325 kgf/cm2} Hydraulic Tank Capacity: - 535 liters Weight Operating Weight: - 102.1 t Ground Pressure: - 95.9 kPa Counterweight: - 34,600 kg Transport Weight: - 59,305 kg
