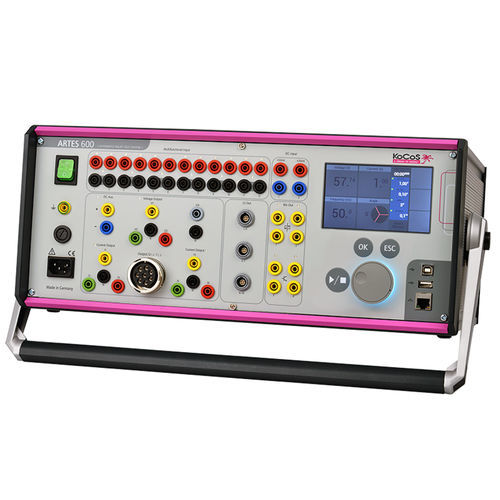

Laboratory test system ARTES 600

for electrical networksfor the electronics industryfor power transformers

The universal relay testing solution ARTES 600 is the compact and universal solution for testing all types of protection relays. Because of the built-in control panel, the light weight and the low noise level, the robust test system can be used on site as well as in laboratories. ARTES 600 makes light work of highly complex test tasks. 4 voltage outputs and 6 current outputs which can provide particularly high output power allow three-phase tests on static, digital and self-powered relays. Even three-phase tests on differential protection relays can be carried out without additional equipment. The new amplifier and measuring units ARTES 600 is the perfect answer to the need to combine high output power and high amplifier accuracy in one device. With powerful, high-precision amplifiers, multifunctional measurement inputs and, last but not least, simple handling and operation, ARTES 600 is the ideal solution for professional 3-phase relay testing. The new integrated TJCP operator interface The new internal TJCP operator interface is a special feature. Its high-resolution 5“ touch screen with smart touch technology enables many tests to be carried out quickly and easily without having to connect an external PC. The clear, restructured user interface guides the user intuitively to complete the task in hand.
