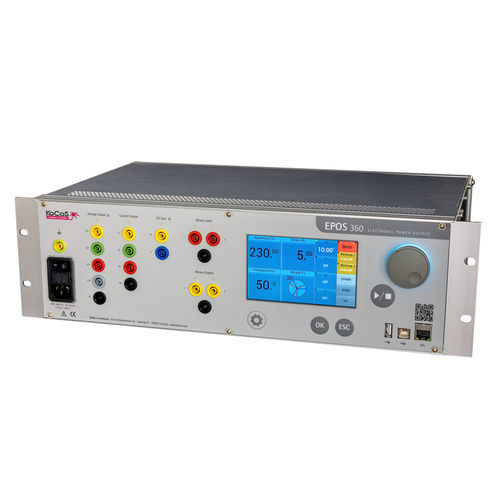

Signal generator EPOS 360

frequencytransientcurrent

The multi-functional three-phase signal generator! EPOS 360 is the multi-functional three-phase generator which comes into its own whenever maximum power and high signal accuracy are required. Intelligent amplifier technology and fully synthetic signal generation make it possible to issue any signal shape across a wide frequency range or even to play back complex transient signal characteristics. EPOS 360 is designed for use as a stand-alone device or for operation with an external PC. Electronic Power Sources High-precision current and voltage sources are becoming more and more important in many areas of electrical engineering and especially in measuring and testing technology. EPOS 360 is used wherever absolutely precise signals with a very low distortion factor, freely selectable signal forms and high power are required. EPOS 360 is therefore suitable for use in the testing, setting and calibration of power and power quality measuring instruments, disturbance recorders and electricity meters, among other things. Output of COMTRADE records & generation of any signal characteristic The TRANSIG-monitor included in the scope of delivery can be used for the full graphical display and output of recorded signal characteristics which are available in standard COMTRADE format. During tests these signal characteristics are then “played back“ as transient signal waveforms by EPOS.
