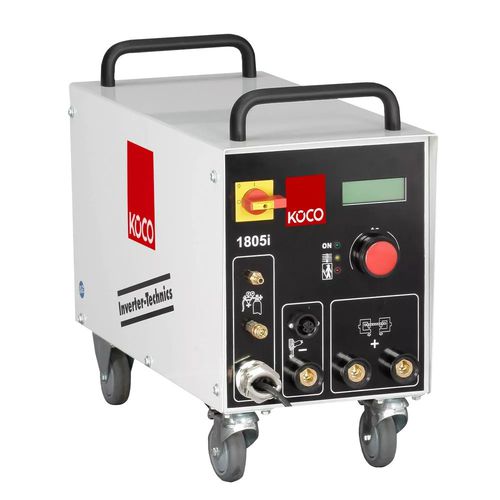

Inverter welding system 1805i

manualstudthree-phase

With our robust Inverter 1805i every welding job becomes super easy. The long-lasting welding machine is suitable for weldable stud ranges between 2-19 mm and allows a maximum current load of 1600 A. The welding machine can be used in a wide range of applications. The time setting range of this lightweight machine is a maximum of 1000 ms and, in addition to safe operation, also offers flexible the accurate adjustment of the welding energy. Benefits • Particularly suitable for short-cycle-stud welding • Particularly suitable for thin work-pieces • Stepless, exact adjustment of welding current and time • Ideal for mobile tasks • Designed for welding on building sits • Plain text on LC-display • Operating interface: choice between 4 languages: German, English, French, Italian • Shielding gas equipment: standard Technical information • Stud welding with ceramic ferrule, weld area Ø : 2 - 19 mm • Short-cycle stud welding, weld area Ø : 2 - 10 mm • Shielding gas stud welding, weld area Ø : 2 - 12 mm • Weight : 36 kg • Weld area Ø : 2 - 19 mm • Welding gun connections : 1 pcs • Max. current : 1600 A • Infinitely variable current setting range : 200 - 1600 A • Infinitely variable time setting range : 1 - 1000 ms • Shielding gas pre-flow time : 10 - 2000 ms • Memory capacity : 20 Parameter sets • Max. studs/min. for ... Ø : 2 / 19 6 / 16 mm • Mains connection: 50/60 Hz, three-phase current : 400 V • Mains connector for 400 V : 63 A • Mains cable : 5 / 10 m/mm² • Slow-blow mains fuse : min. 50 A • Mains input power at ...% DC : 3 / 90, 6 / 65, 100 / 7,5 kVA • Mains voltage tolerance : - 15 / + 6 % • Protection class : IP 23
