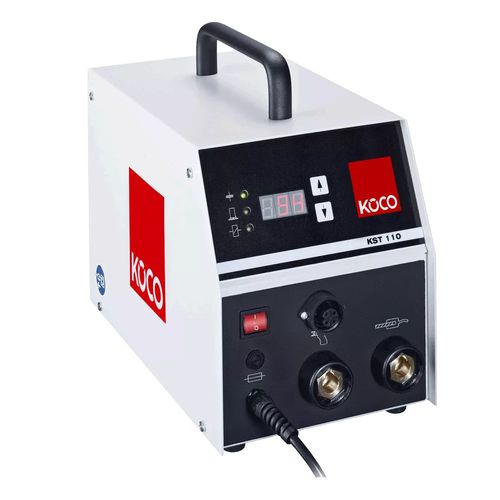

Capacitor discharge welding system KST 110

manualstud230V single phase

Our KST 110 is equipped with a capacitor discharge and is suitable for welding (stainless) steel, aluminium and brass. The welding machine is suitable for weldable stud ranges between 3-10 mm stud diameter, the welding energy is continuously adjustable and the charging voltage is displayed digitally. The lightweight weighs only 9,9 kg and offers a safe usage and flexible application possibilities. Benefits • Stud welding equipment with capacitor discharge • Suitable for welding steel, stainless steel, aluminium and brass • Weldable stud range 3-10 mm stud diameter • Continuously adjustable charging voltage • Digital display of charging voltage • Weight only 9,9 kg • Steel housing, powder-coated • Technical information • Weight : 9,9 kg • Weld area Ø : 3 - 10 mm • Welding gun connections : 1 pcs • Slow-blow mains fuse : 6,3 A • Protection class : IP 23 • Type of cooling : F • Housing dimensions (L x W x H) : 330 × 190 × 280 mm • Welding power : M 10 / 8 ; M 6 / 15 Studs/min. • Capacity : 99000 µF • Charging voltage : 50 - 200 V • Operating temperature range : 0 - 45 °C
