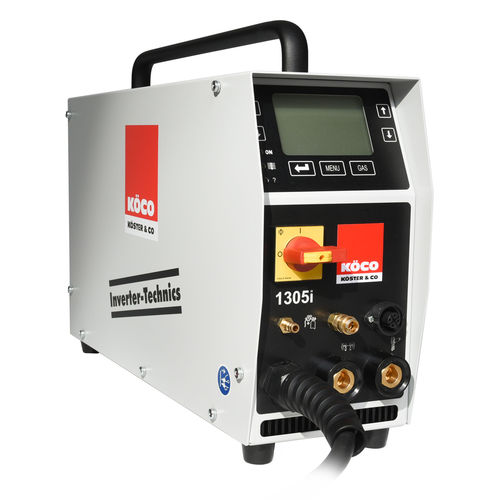

Manual welding system 1305i

studinverter

With our robust Inverter 1305i every welding job becomes super easy. The long-lasting welding machine is suitable for weldable stud ranges between 3-16 mm and allows a maximum current load of 1300 A. The welding machine can be used in a wide range of applications. The time setting range of this lightweight machine is a maximum of 1000 ms and, in addition to safe operation, also offers flexible the accurate adjustment of the welding energy. Benefits • Weldable stud range 3–16 mm • Max. current 1.300 A • Max. time 1.000 ms • Low weight • Welding energy accurately adjustable Technical information • Stud welding with ceramic ferrule, weld area Ø : 3 - 16 mm • Short-cycle stud welding, weld area Ø : 3 - 8 mm • Shielding gas stud welding, weld area Ø : 2 - 16 mm • Weight : 24 kg • Weld area Ø : 3 - 16 mm • Welding gun connections : 1 pcs • Max. current : 1300 A • Infinitely variable current setting range : 200 - 1300 A • Infinitely variable time setting range : 1 - 1000 ms • Shielding gas pre-flow time : 100 - 2000 ms • Memory capacity : 20 Parameter sets • Max. studs/min. for ... Ø : 2 / 16 5 / 12 mm • Mains connector for 400 V : 32 A • Mains cable : 5 / 6 m/mm² • Slow-blow mains fuse : 35 A • Mains input power at ...% DC : 2 / 69, 4,5 / 45, 100 / 9,5 kVA • Mains voltage tolerance : - 15 / + 6 % • Protection class : IP 23 • Type of cooling : F • Housing dimensions (L x W x H) : 550 x 175 x 395 mm
