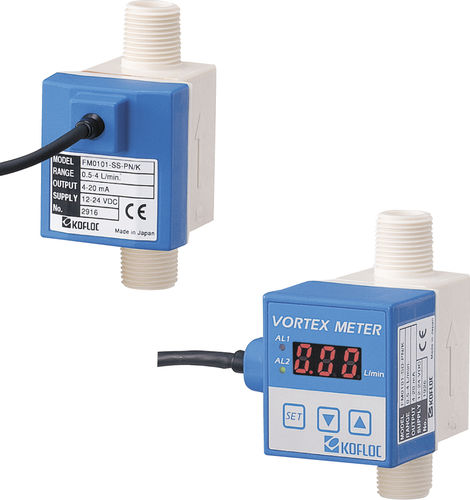

Vortex flow meter FM01 seriesvolumefor waterin-line
Add to favorites
Compare this product
Characteristics
- Technology
- vortex
- Type
- volume
- Fluid
- for water
- Installation
- in-line
- Communication
- 4-20 mA
- Supply voltage
- 24 Vdc, 12 Vdc
- Protection level
- IP64
- Other characteristics
- compact
- Volumetric flow rate
Min.: 0.5 l/min
(0.1321 us gal/min)Max.: 150 l/min
(39.6258 us gal/min)- Process temperature
Min.: 0 °C
(32 °F)Max.: 70 °C
(158 °F)- Process pressure
1,000,000 Pa
(145.04 psi)- Precision
3 %
- Repeatibility
0.5 %
Description
When an object is put in a flow of liquid, an oscillating vortex street, called Karman vortex street, takes place in the downstream of the object. It was named after the fluid dynamicist who discovered this phenomenon. Our Karman vortex flow meters have been developed based on the measurement principle of a Karman vortex street.
Small and lightweight.
Wide flow range avaiable from 0.5～4L/MIN to 10～150L/MIN.
CE
