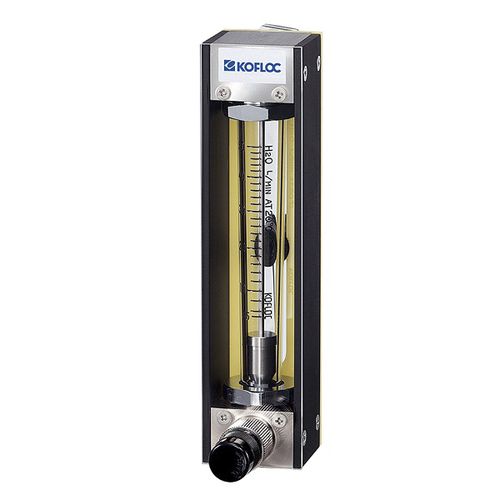

Reed switch flow meter RK197 seriesvariable-areavolumefor water
Add to favorites
Compare this product
Characteristics
- Technology
- variable-area
- Type
- volume
- Fluid
- for water, for gas
- Installation
- in metering tube
- Material
- plastic
- Other characteristics
- compact, reed switch
- Volumetric flow rate
Max.: 150 l/min
(39.6258 us gal/min)Min.: 0.1 l/min
(0.0264 us gal/min)- Process temperature
Max.: 35 °C
(95 °F)Min.: 10 °C
(50 °F)- Process pressure
500,000 Pa
(72.52 psi)- Precision
5 %
Description
The flow meter (area type flow meter) has a float inside a conical cylinder (tapered tube) with the upper end larger than the lower end. The float moves up and down according to the intensity of flow, and the reading taken when the float balances indicates the flow rate. KOFLOC provides flow meters with a valve that can perform both measurement and control of the flow rate, flow meters with an alarm function and many other products.
■Fluid：
Gas N₂,Air,H₂,He,Ar,O₂,CO₂ etc.
Liquid H₂O
Reed Switch for Alarm function.
Valve arrangement available at the top.
RoHS
