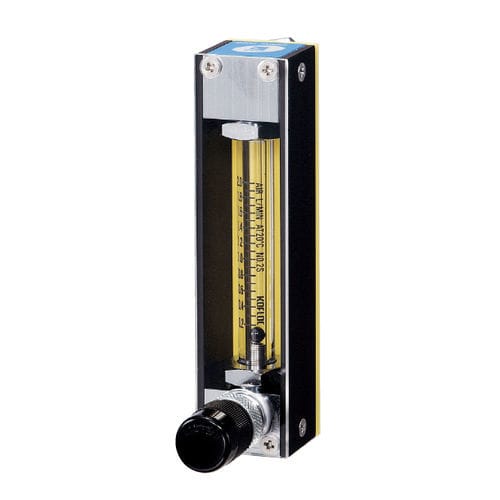

Variable-area flow meter RK1600R volumefor gasbrass
Add to favorites
Compare this product
Characteristics
- Technology
- variable-area
- Type
- volume
- Fluid
- for gas
- Material
- brass
- Other characteristics
- compact, with needle valve
- Volumetric flow rate
Min.: 1 l/min
(0.2642 us gal/min)Max.: 20 l/min
(5.2834 us gal/min)- Process temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)- Process pressure
500,000 Pa, 800,000 Pa
(72.52 psi, 116.03 psi)- Precision
5 %
Description
The flow meter (area type flow meter) has a float inside a conical cylinder (tapered tube) with the upper end larger than the lower end. The float moves up and down according to the intensity of flow, and the reading taken when the float balances indicates the flow rate. KOFLOC provides flow meters with a valve that can perform both measurement and control of the flow rate, flow meters with an alarm function and many other products.
■Fluid：N₂,Air,H₂,He,Ar,O₂,CO₂ etc.
Compact design.
RoHS
