Gas mixing flow meter RK120XM
variable-areavolumefor gas

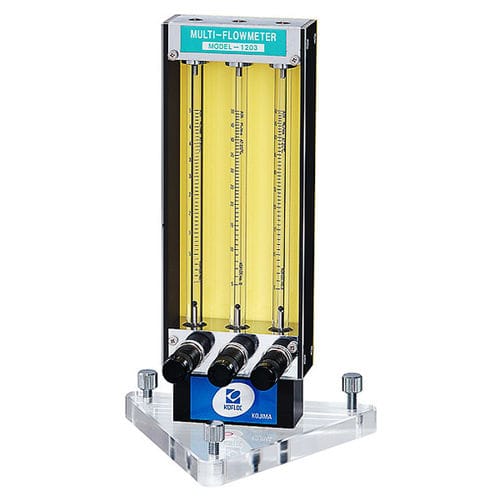

Gas mixing flow meter - RK120XM  - KOFLOC Corp. - variable-area / volume / for gas
Gas mixing flow meter - RK120XM  - KOFLOC Corp. - variable-area / volume / for gas
Gas mixing flow meter - RK120XM  - KOFLOC Corp. - variable-area / volume / for gas - image - 2
Add to favorites
Compare this product


Characteristics

Technology
variable-area
Type
volume
Fluid
for gas
Installation
in metering tube
Applications
laboratory, for gas mixing
Other characteristics
precision, with needle valve
Volumetric flow rate

Max.: 50 l/min
(13.2086 us gal/min)

Min.: 1 l/min
(0.2642 us gal/min)

Process temperature

Max.: 60 °C
(140 °F)

Min.: 0 °C
(32 °F)

Process pressure

500,000 Pa
(72.52 psi)

Precision

1 %, 2 %

Description

The flow meter (area type flow meter) has a float inside a conical cylinder (tapered tube) with the upper end larger than the lower end. The float moves up and down according to the intensity of flow, and the reading taken when the float balances indicates the flow rate. KOFLOC provides flow meters with a valve that can perform both measurement and control of the flow rate, flow meters with an alarm function and many other products. Simple gas mixing of 2 to 4 lines With a stand. Control of minute flows. Highly accurate measurement of ±2%F.S. or less. Superior control performance by needle valve in the non-rotary structure. RoHS

Catalogs

No catalogs are available for this product.

See all of KOFLOC Corp.‘s catalogs
