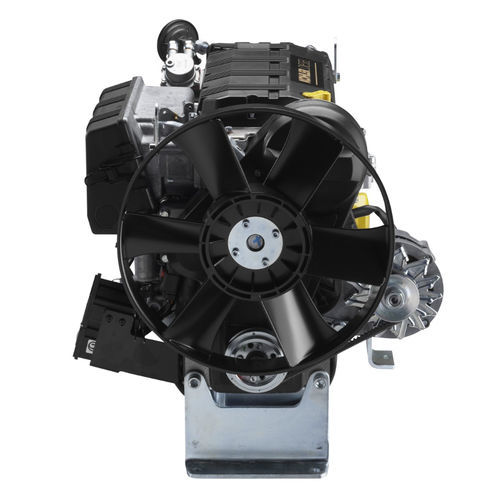

Diesel engine KDW1404
in-linepumpwater cooling

Diesel engine - KDW1404 - Kohler Energy - in-line / pump / water cooling
Diesel engine - KDW1404 - Kohler Energy - in-line / pump / water cooling
Diesel engine - KDW1404 - Kohler Energy - in-line / pump / water cooling - image - 2
Diesel engine - KDW1404 - Kohler Energy - in-line / pump / water cooling - image - 3
Diesel engine - KDW1404 - Kohler Energy - in-line / pump / water cooling - image - 4
Diesel engine - KDW1404 - Kohler Energy - in-line / pump / water cooling - image - 5
Diesel engine - KDW1404 - Kohler Energy - in-line / pump / water cooling - image - 6
Add to favorites
Compare this product


Characteristics

Type
diesel
Technology
in-line
Product applications
pump
Cooling system
water cooling
Other characteristics
compact, liquid-cooled
Power

17.9 kW
(24.337 hp)

Torque

70 Nm
(51.6294 ft.lb)

Rotational speed

2,700 rpm
(16,964.6 rad.min-1)

Displacement

1,372 cm³
(46.393 US fl oz)

Tank volume

3.3 l
(0.9 gal)

Weight

98 kg
(216.05 lb)

Length

599 mm
(23.6 in)

Width

412 mm
(16.2 in)

Height

519 mm
(20.4 in)

Description

Exceptional power. That's what you're getting with KOHLER® liquid-cooled diesel engines. Fast-acting fuel injection technology delivers the punch you need and fuel savings you expect. And our belt-driven, overhead camshaft delivers low-turbulence performance for near-silent operation. Four-stroke in-line, cast iron block, aluminum cylinder head, indirect injection with injector pump on head 1 Performances measured according to ISO 14396 without final intake and exhaust line.Actual engine performances may be affected by accessories (intake and exhaust line, charging , cooling fan, etc.), application, ambient operating conditions (temperature, humidity and altitute) and other factors. Features • Integrated fuel-injection system and overhead cam help ensure less maintenance and fewer trips to the shop • Superior balance, lower cylinder volume, and belt-driven valve train provide nearly non-existent noise and smooth operation • Cast-iron block construction ensures durability and lasting performance • 3-year limited warranty This engine powers the following equipments • 4x4 Tractor • Aerial Platform • Asphalt Cutter • Cement Mixer • Compact Shovel Loader • Dumper • Farm Machinery • Fruit Harvester • Generator • Mini Dumper • Mini Excavator • Motor Compressor • Refrigerating Groups • Sweeper • Welder

Catalogs

DIESEL KDW
DIESEL KDW
9 Pages
