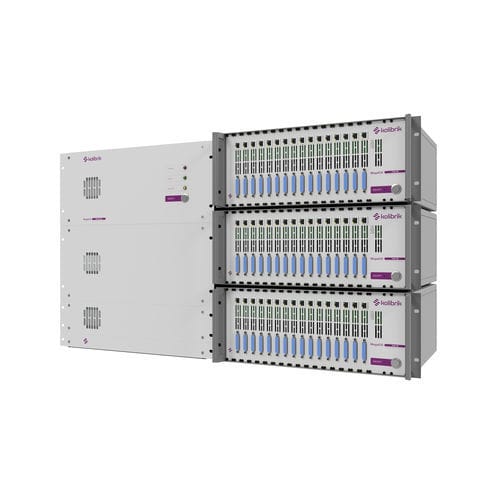

MegaEIS product family is a modular testing system for EIS analysis of H2FC stacks. System is designed for cooperation with external DC load which handles most of the stack power. System also provides continuous cell voltage monitoring feature, even during EIS acquisition.
As the system is modular it is usually built according to concrete application. The decisive parameters are concrete parameters of the stacks that might be planned for measurement: maximum voltage, maximum current, maximum power, and parameters of available booster. The information serves for the right choice of MegaEIS power part. The system is always water-cooled.
The certain power part configuration allows to do EIS acquisition of data simultaneously from all cells. In this case it is necessary to know what is the maximum number of channels that might be possibly measured.
SOLUTION DETAILS
Stack voltage up to 1000 V
Stack current up to 2000 A
Inner dissipated power of StackEIS up 20 kW
EIS measurement one cell gradually or all cells simultaneously
High precision current sensing of both DC and AC components
