Temperature monitoring system CVM-H series

voltagenoiseCAN bus

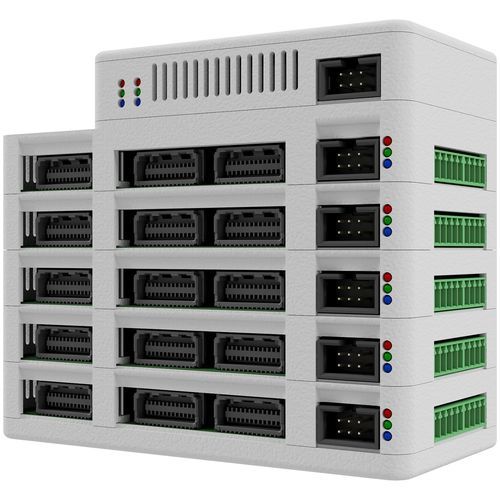

Stackable cell voltage monitoring (CVM) system designed for H2 fuel-cell stack research, testing and applications. CVM system can be used to prevent damage to individual cells, to monitor lifetime conditions, and to ensure optimal working conditions in applications. CVM-64H module is ideal for testing and research purposes. CVM-64H module is designed as a precise automotive-ready solution with additional CAN bus for use mainly in hydrogen fuel cells and electrolyzers research, testing and applications. For precise 5 V-range solution see CVM-24P module and sets. For cost-effective solution for applications see CVM-32A modules and sets. For general temperature and voltage monitoring see TEVOMET. For comparison of all models see Overview. PRODUCT DETAILS 64 channels per board Multiple boards can be daisy-chained Very compact design, part of FC Stack Control System Compatible with other Kolibrik.net modules Default channel range ±2.5 V, can be extended 24-bit sampling, RMS noise 10-100 μV Accuracy 0.02% of range + 0.05% of reading
